Overview

We’re thrilled to introduce the Multi-Style Cutting Module, a major enhancement to the Cutting Module that brings greater efficiency, flexibility, and control to the cutting process.

This feature allows cutting specialists to:

• Add markers for multiple orders and styles

• Combine several production orders into a single cutting order

• Generate bulk batches across multiple orders with one click

This upgrade significantly improves fabric utilization, reduces manual workload, and reflects real-world cutting operations more accurately.

🎯 Purpose

In many factories, the same style can appear in multiple production orders.
Previously, users had to add a separate marker for each order, which consumed time and increased data entry work.

With this new feature:

• Users can now add one marker per style, regardless of how many orders belong to that style.

• This dramatically speeds up data input, reduces redundancy, and ensures consistency in cutting setup.

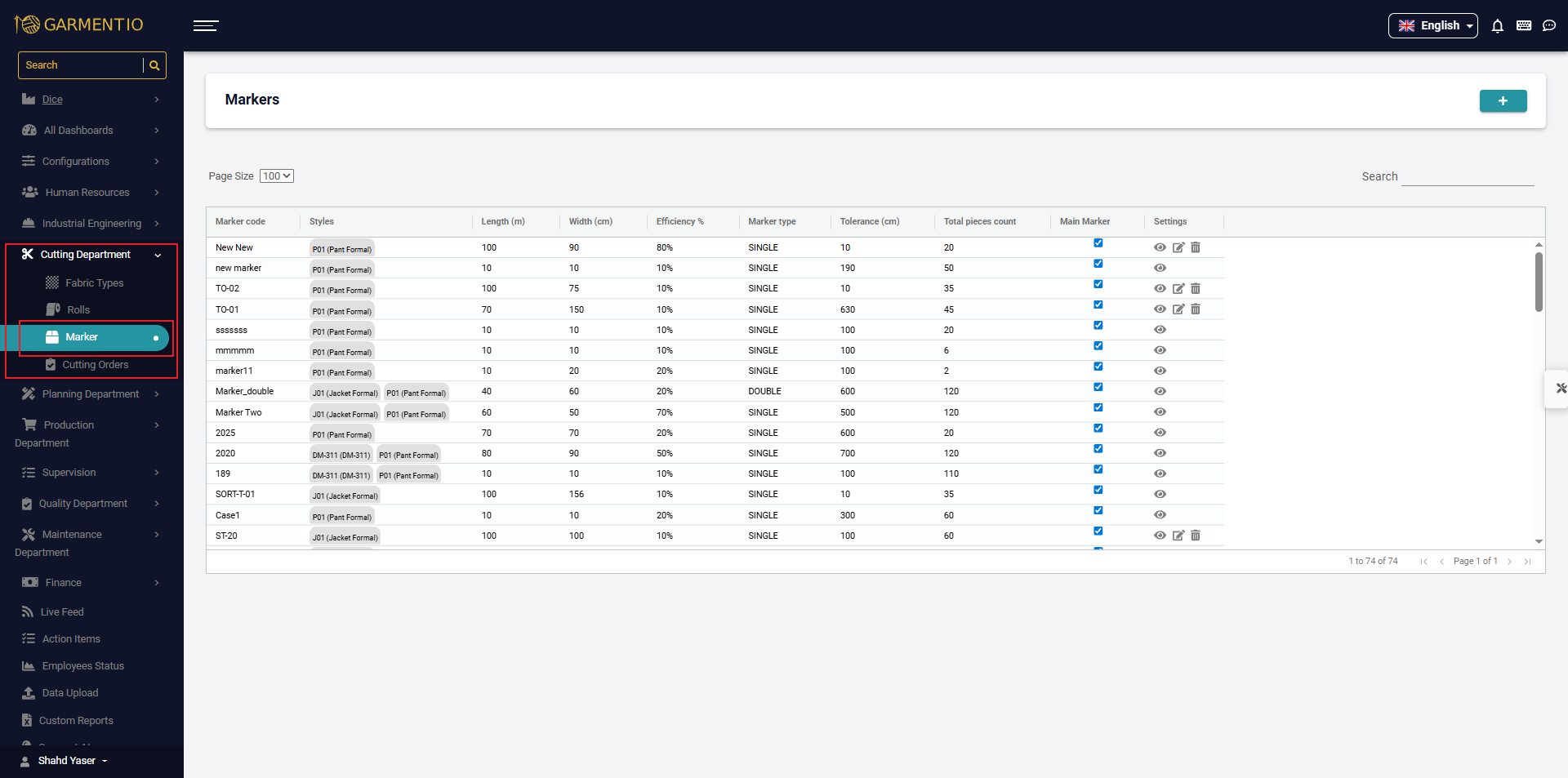

🧭 New “Markers” Page in Cutting Module

You will now see a new page named “Markers” under the Cutting Module.

Here, users can view a list of markers related to styles that are:

• New

• Bundled

• In-Progress

✂️ Creating a New Marker

To create a new marker:

1. Click the Add button.


2. Fill in all marker information (marker code, length, etc.).

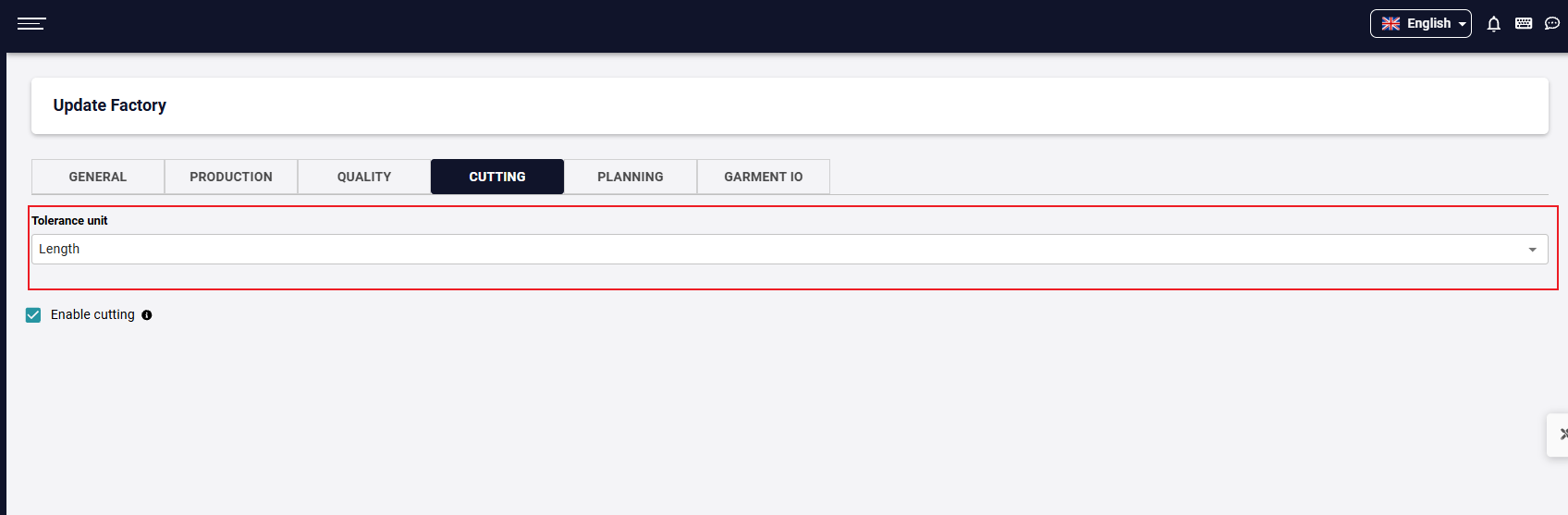

📏 Tolerance Setup

If the factory settings define tolerance by percentage, the system will ask you to save tolerance as a percentage value.
If the factory defines tolerance by length, you’ll be prompted to enter tolerance in centimeters.

👕 Adding Styles to a Marker

After entering the main marker info:

1. Click the “+” button to add styles to the marker.


2. For each style, select the required sizes and quantities.


3. After adding all the needed information, click Save.

📘 Note:
If a marker is already linked to a cutting order, it cannot be edited or deleted.

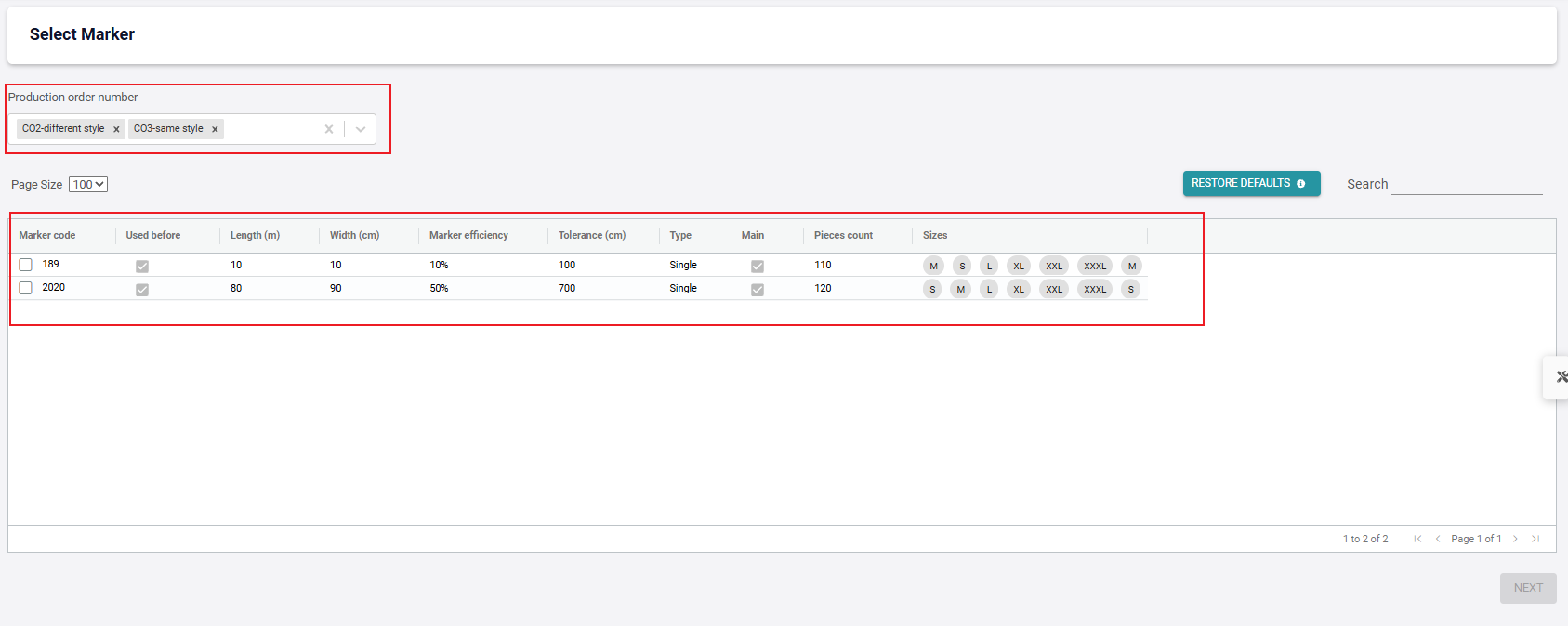

🧾 Creating Multi-Order Cutting Orders

When creating a new Cutting Order, you can now:



• Select multiple production orders in the order selection list.

• The system will display markers that include any of the styles from those orders.

• Choose the required marker, then add rolls and layers as usual.

⚡ Bulk Batch Generation

When generating batches in bulk, the system automatically determines which order each batch belongs to.

The system automatically detects:

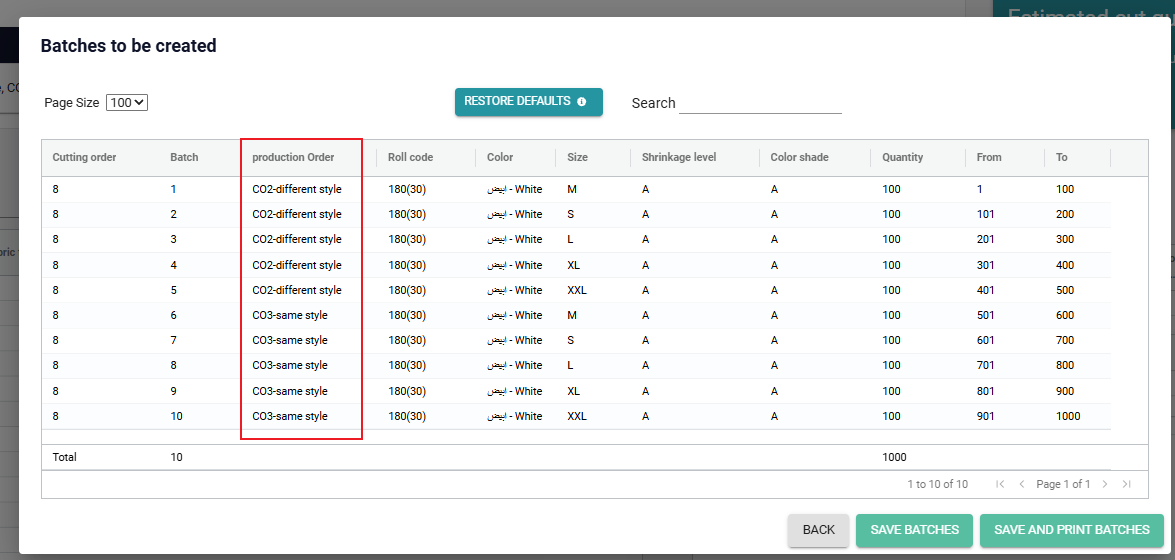

• If orders differ by style, color, or size, the system assigns batches automatically to the correct order.


•

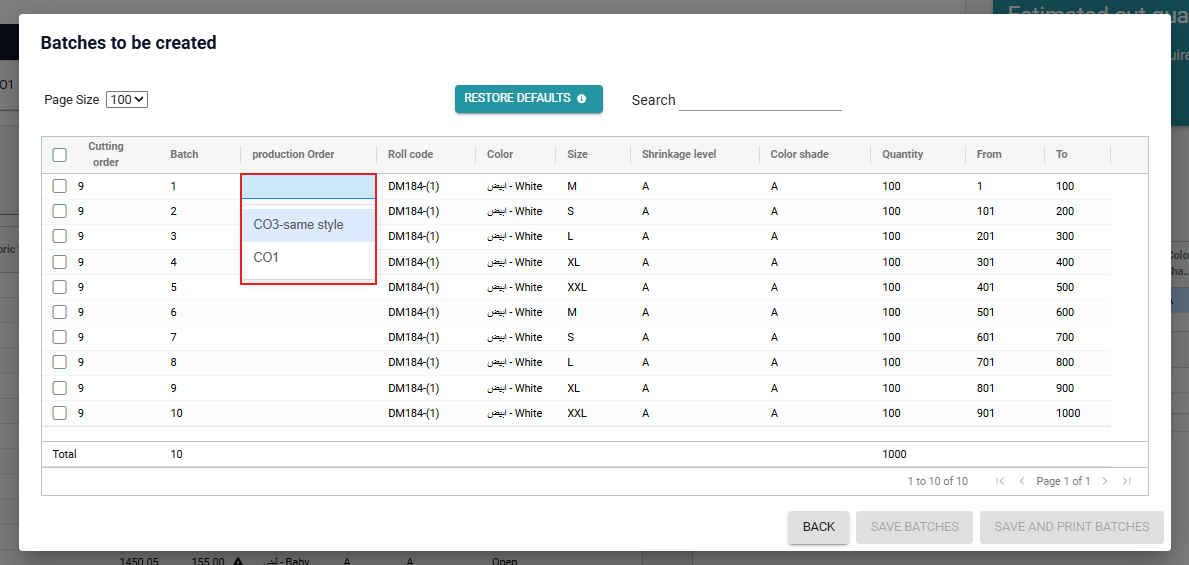

• If orders share the same style, color, and size, the system cannot distinguish them automatically — users must assign batches manually.


•

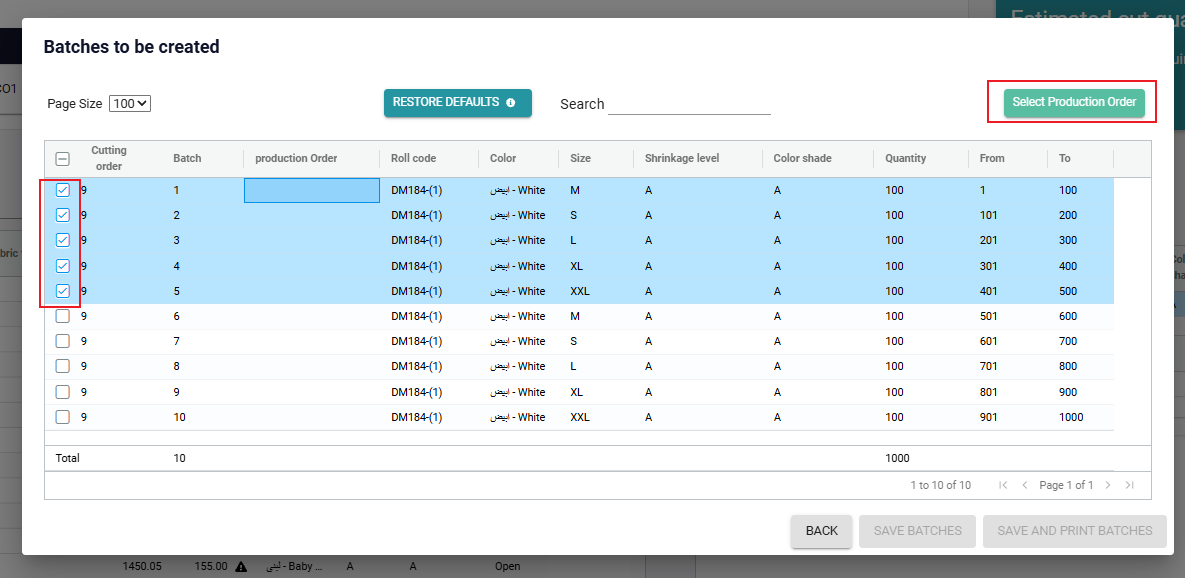

🧠 Tip: You can select multiple batches together to assign orders in bulk and save time.

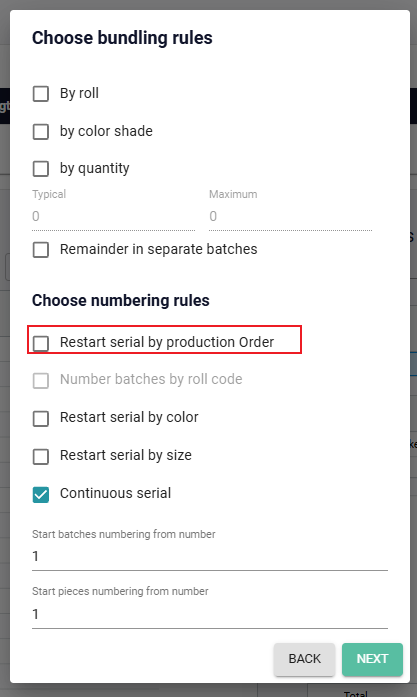

🔢 Batch Numbering Options

You can choose to restart batch numbering per production order, providing more flexibility and traceability when managing multi-order cutting operations.

🖨️ Printing and Saving Batches

After saving:

• The system allows you to print batches associated with a specific order.

• All batches are automatically saved and linked to the correct order in the system.

✅ Summary

With the Multi-Style Cutting Module, factories can now:

• Combine multiple orders and styles under one cutting order

• Generate bulk batches automatically and intelligently

• Save significant time in data entry and fabric planning

• Improve efficiency and reduce waste in the cutting process

This upgrade makes Garment IO’s Cutting Module smarter, faster, and more aligned with real production workflows.
