Operational data is now easier to access and read, helping you monitor performance and make faster, more confident decisions.

The New Main Dashboard | Instant Analysis With Flexible Interactive Widgets

The old dashboard displayed data in a fixed format, making it harder than necessary to read performance and analyze it at a glance.

That changes now.

The dashboard has been completely rebuilt around flexible, customizable widgets. Each widget automatically displays key operational data based on the selected factory, line, or section — with color-coded indicators showing trends instantly and one-click navigation to any detailed report.

Dashboard Widgets

Production and Performance Monitoring

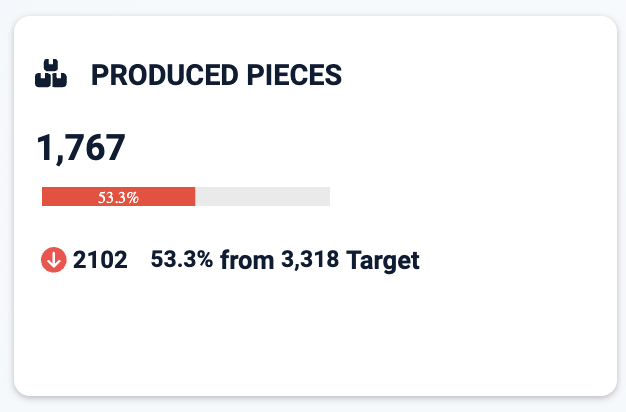

Pieces Produced: displays total production versus the planned quantity through a clear progress bar. The target is calculated based on order planning data or AI targets. Clicking the title opens the Throughput Report directly with the same time range and scope.

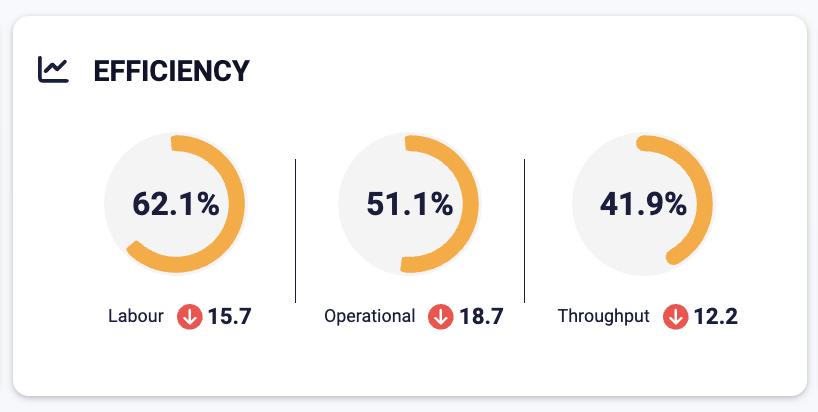

Efficiency Widget: shows workforce efficiency, operational efficiency, and production efficiency. Clicking any of the three efficiency names opens its linked report directly.

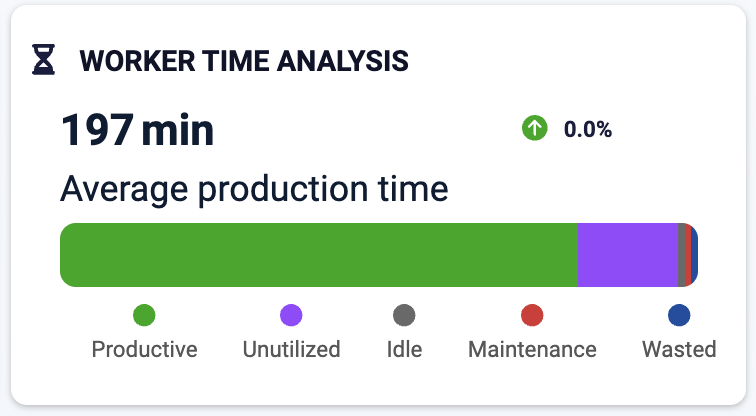

Worker Time Analysis: displays the average time in minutes spent on production, stoppages, and maintenance. Hovering over the bars shows average values per category.

Quality and Efficiency Monitoring

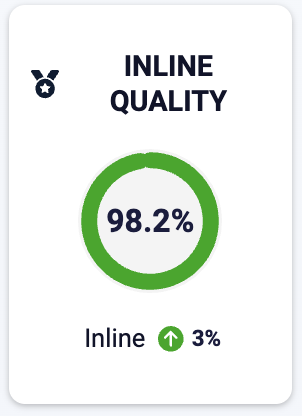

Inline Production Quality: displays the defect rate through a color-coded pie chart. Clicking the title opens the Inline Inspection Report with the same time range and scope.

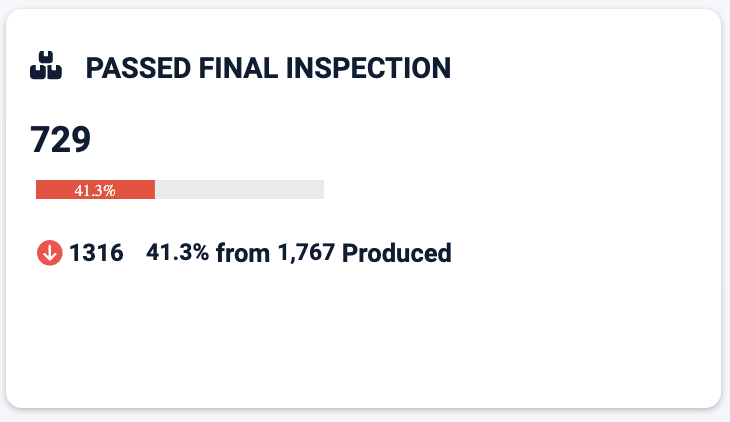

Pieces That Passed Final Inspection: compares inspected pieces against total production to ensure all pieces have been inspected by end of day.

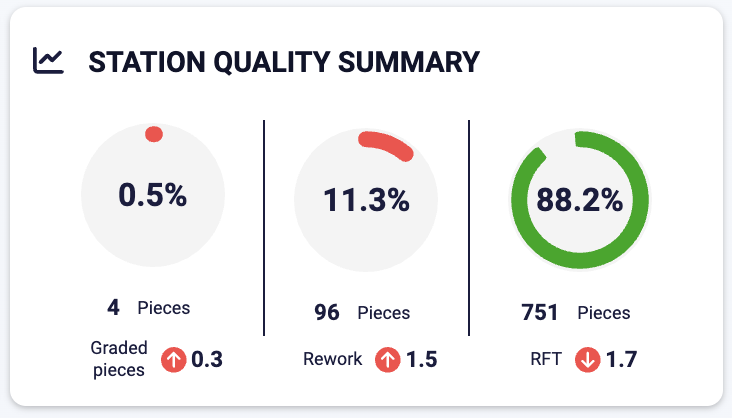

Station Quality Summary: monitors the second-quality piece rate, repair rate, and Right First Time (RFT) production rate. Clicking any indicator opens its linked report.

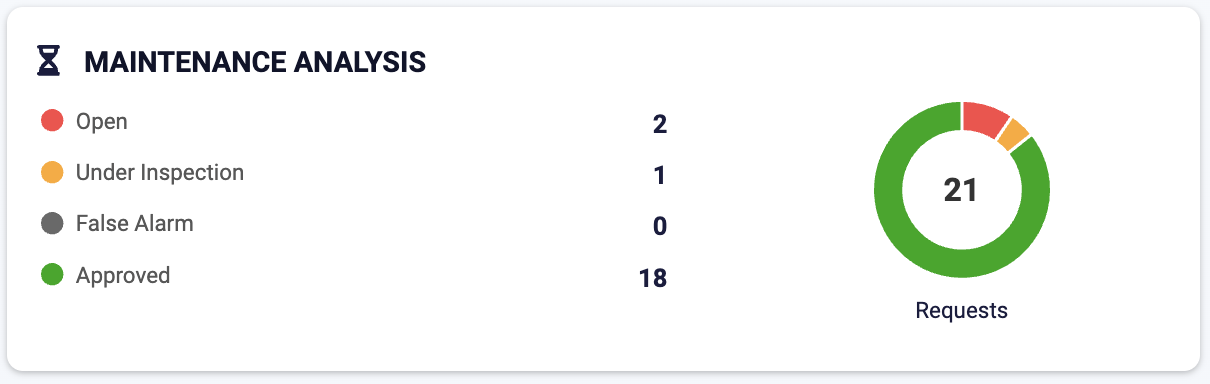

Maintenance Requests: displays maintenance request status across open, under review, approved, and rejected categories. Clicking the title opens the Maintenance Requests Report with the same period and scope.

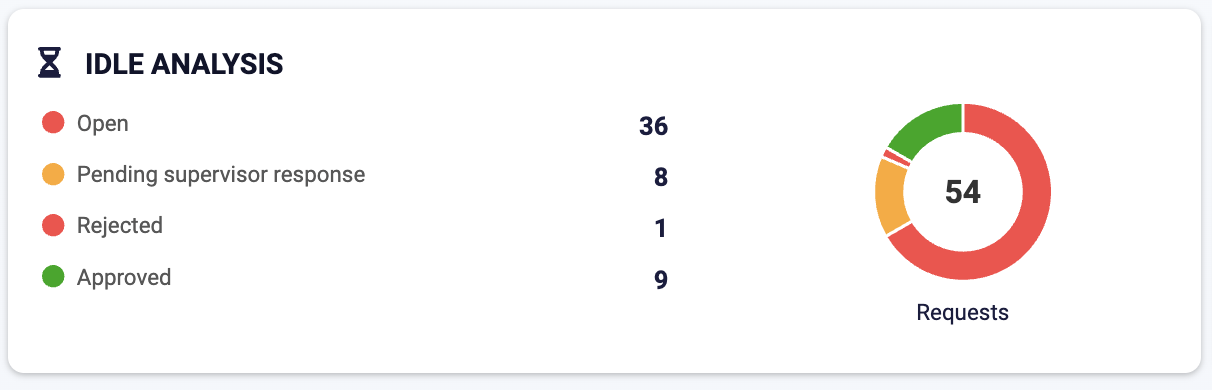

Downtime Analysis: shows open, completed, and rejected stop requests with a pie chart breakdown. Clicking the title opens the Employee Downtime Report.

Workforce and Employee Performance Monitoring

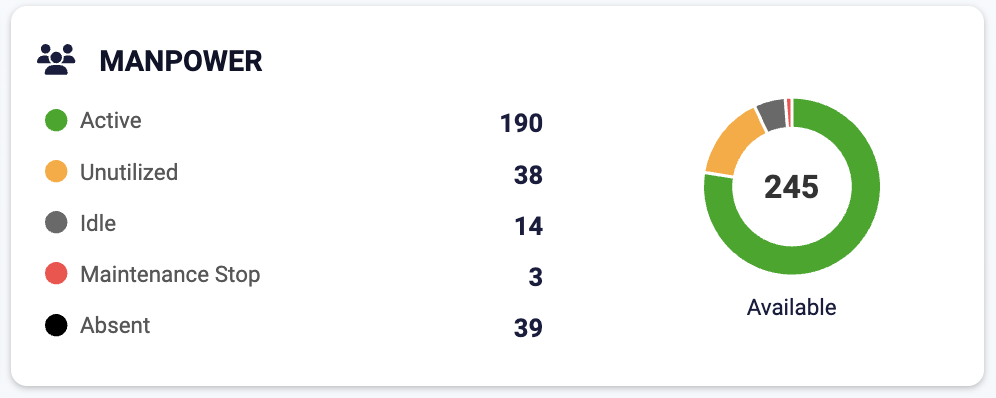

Manpower Analysis: displays worker counts across five categories: active, stopped, stopped for maintenance, unutilized, and absent. Clicking any category opens the Employee Efficiency Report with the same period and scope.

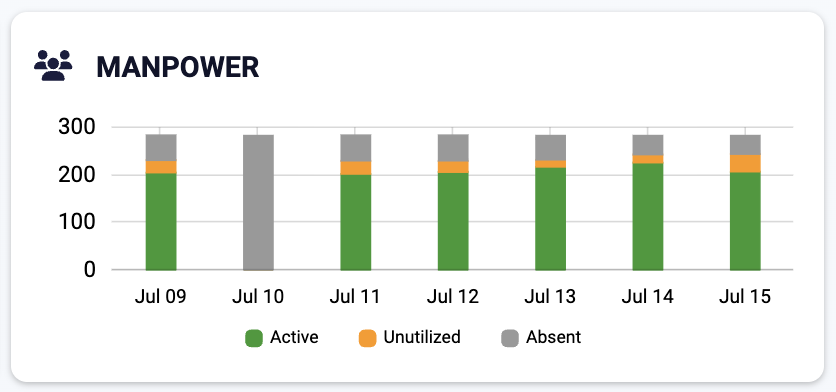

Weekly Manpower Trend Chart: instead of seeing total workforce for a single day only, you can now track how it changes day by day across a full week.

• Select a time range of two to seven days and the widget automatically switches to a bar chart.
• Each bar represents a day divided into three segments: active workers, unutilized workers, and absent workers, with the total shown above each bar.
• Selecting a single day keeps the widget as a standard summary. Maximum selection is seven days.

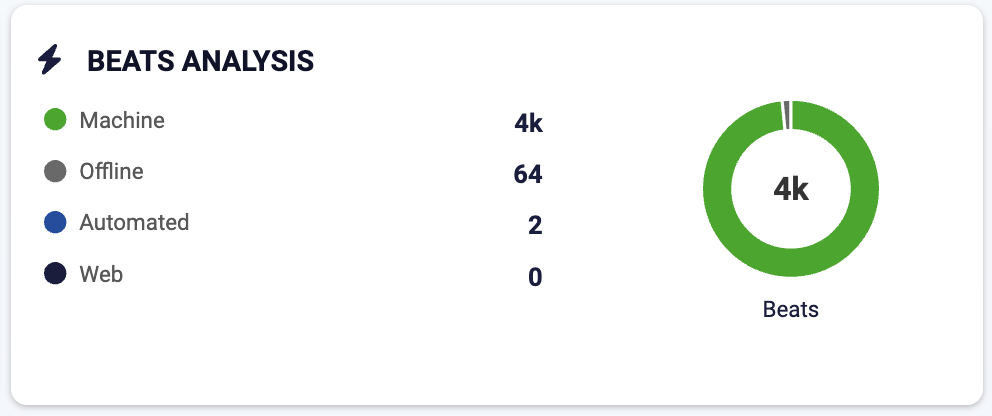

Beats Analysis: shows how production operations were registered and whether any connectivity issues occurred during logging. Clicking the title opens today's registered operation details with the option to change the date for previous days.

Additional Smart Features

• Instant trend indicators: green signals improvement, red signals the need for attention.
• Accurate performance comparison: the comparison period is automatically set based on actual working days, excluding weekends and holidays.
• Dashboard customization: widgets can be arranged based on the operational needs of each factory or section.
• Auto-hide empty widgets: if there's no data for a given period, the widget doesn't appear, keeping the dashboard clean.

Frequently Asked Questions

• Can I customize which widgets appear on my dashboard?
  Yes, you can arrange the widgets to match your needs and hide any that aren't relevant to you.
• How is the comparison period calculated automatically?
  The system sets it based on actual working days, excluding weekends and holidays to ensure accurate analysis.
• What's the maximum number of days for the weekly workforce chart?
  Seven days. Selecting fewer than two days keeps the widget as a standard summary.
• Can I access detailed reports directly from the dashboard?
  Yes, clicking a widget's title or any indicator inside it opens the linked report directly with the same time range and scope already applied.
