Add markers to orders
Currently, the system supports having one or more cutting markers for a single production order. To add a marker, follow these steps:
How to add Markers to Production orders:
- Ensure that the appropriate permissions are assigned to users for adding markers through the Permissions page.

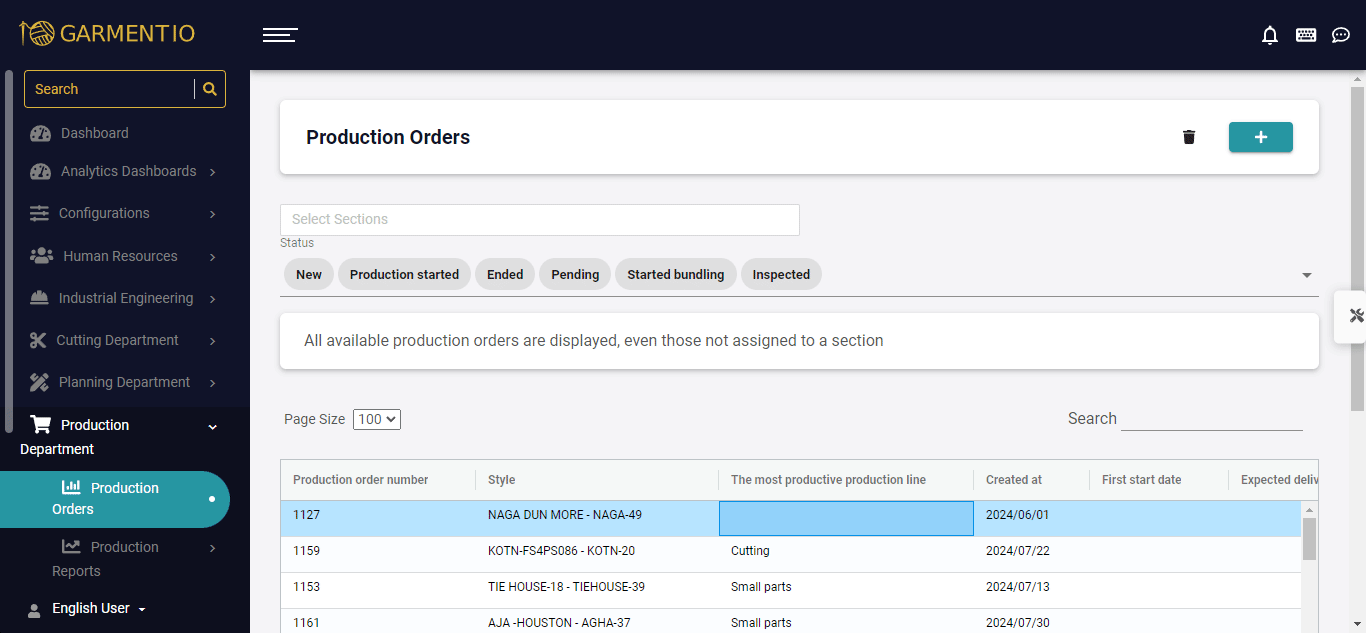

- Go to the Production Orders page (Production Management > Production Orders).
- Right-click on the desired production order.
- Select "Add Marker".
- To add a new marker, click on the "+" button.
- Enter the required data for the marker (all colored fields).
The required data includes:
- Marker code (must be unique).
- Length (enter the length of the marker in meters).
- Width (enter the width of the marker in centimeters).
- Marker efficiency (enter the efficiency percentage of the marker).
- Size ratios (combine all sizes of the production order in the "Number of Pieces/Size Ratios" column. You can show or hide the sizes by clicking the arrow ">").
Ensure that you enter the number of pieces for each size present in the marker. At least one size must be entered.
- The total number of pieces in the marker is calculated in the "Number of Pieces" column after entering all marker data.
- Type:
- Single: Pieces in the marker are whole pieces.
- Double: Pieces in the marker are half pieces (two layers need to be cut below the marker to get a complete piece).
- Allowance (percentage/length of the allowance between the marker and the layer below it).
- Base (if the marker will be used in cutting basic pieces, the system will not consider pieces produced from non-basic cutting orders that use this marker, and these pieces cannot be added to bundles).
- Marker images can be added using the image upload icon "🧾" in the Settings column.
- The user can modify marker data if it has not been used in cutting orders in the past by double-clicking on the field to be edited.
- The user can delete a marker if it has not been used in cutting orders by clicking on the delete icon "🗑️" in the Settings column.
Ensure that the appropriate permissions are assigned to users for deleting markers through the Permissions page.
